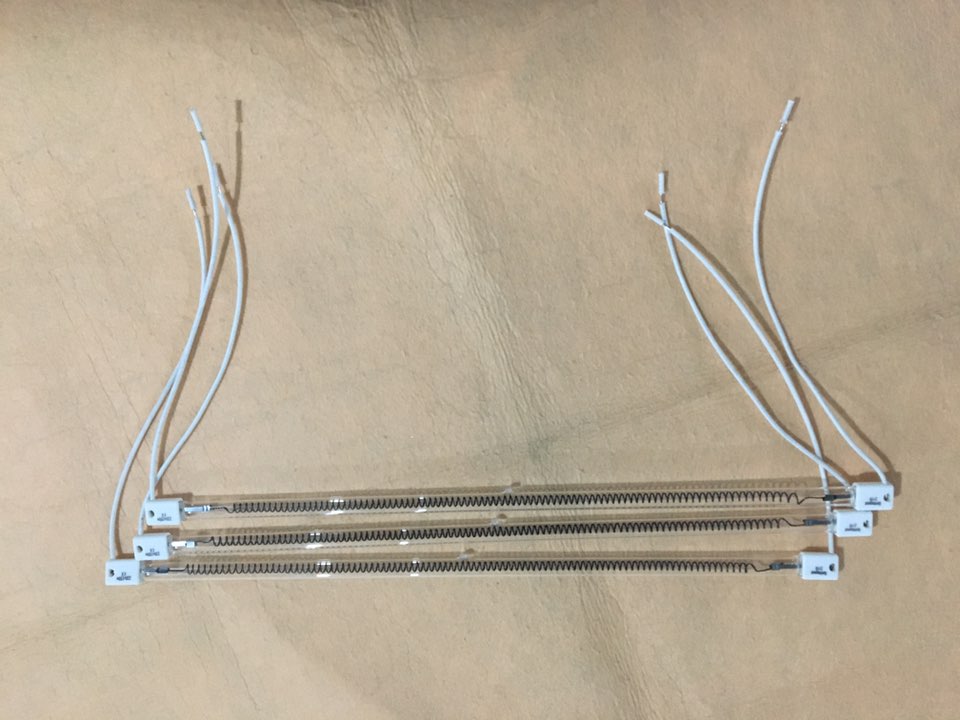

Let’s Talk About Carbon Fiber Quartz Lamps
We build these lamps for one reason: to get a massive amount of infrared heat into industrial drying and curing jobs. Most people are used to standard tungsten filaments, but we do things differently. We use carbon fiber tucked inside a high-purity quartz tube. Why? Because it shifts the heat into that medium-to-long wave range. It doesn’t just sit on the surface; it actually gets deep into the materials you’re working with. The power side of things When you’re picking your wattage and voltage, you’re basically deciding how hard you want the heat to hit. If we go with a high-voltage setup, we can cram more power into a thinner filament. This means the lamp doesn’t have to be huge, but it heats up incredibly fast. Just a heads-up, though—these high-density lamps are thirsty. If your wiring can’t handle the peak current, you’ll get voltage drops. And when that happens, your heating becomes inconsistent, which is a nightmare for quality control. The tube and the plugs The quartz tube isn’t just for show; it keeps the carbon fiber from oxidizing and burning out. We can also add different coatings to tweak how the heat moves. For example, a gold-coated reflector is a great move if you want to push the heat forward and stop wasting energy on the sides. As for the connectors, we usually stick with R7s or Sk15 bases. They’re pretty standard, so they should slide right into most industrial ovens. More importantly, they create a tight electrical connection. That’s key because loose terminals cause arcing, and that’s usually where these lamps die. Real-world use (and the catch) You’ll see these in everything from PET blowing machines to automotive paint lines. The best part is the response time. You can tweak the heat in real-time, which gives you a ton of control. But here’s the thing: carbon fiber is more brittle than metal. If your machinery vibrates a lot, or if someone is a bit too rough during installation, the filament can snap. It’s frustrating, but it’s avoidable. Just make sure your mounting brackets are locked down tight. Keep it steady, and the lamps will do their job.
