Getting Your IR Lamp Setup Right for Paint Booth Heating Walls
When you’re building a heating wall for a paint booth, the goal isn’t just to blast the car with heat. It’s about getting that heat to sit evenly across the whole surface. If your infrared (IR) lamps are just thrown in there without a plan, you’ll end up with a roof that’s scorching and rocker panels that are still cold. That’s how you get curing issues and paint defects that make you want to pull your hair out.
Matching the Heat to the Car
A tiny coupe doesn’t soak up heat the same way a massive heavy-duty truck does. That’s why we don’t do “standard” layouts. Instead, we play around with the vertical spacing of the lamps. We usually pack more lamps into the mid-section. Why? Because that’s where the car is widest and where the body tends to suck the heat away the fastest. It comes down to basic physics. To keep the temperature steady from the bumper to the roof, we tweak the wattage and the gap between the tubes. If you’re dealing with taller vehicles, we stretch out the vertical span but crank up the wattage so the energy actually reaches the metal.
Power, Heat, and Headaches
We usually go with shortwave IR lamps because they heat up fast. But here’s the catch: high-wattage arrays can absolutely hammer your electrical panel. And if you cram too many lamps into one tight spot, you’re not just heating the car—you’re heating the wall itself. You’ve got to make sure your vents and cooling systems can actually breathe, or you’re just wasting power and risking a meltdown.
Keeping Things Simple

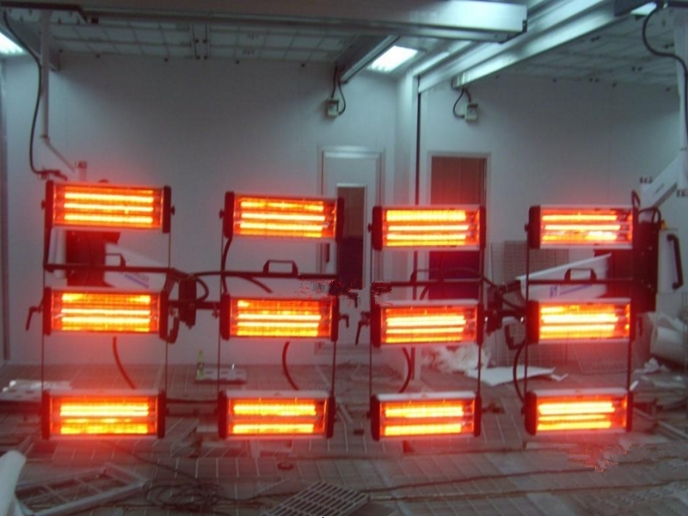

We use modular bracing for a reason. If your business shifts from painting sedans to SUVs, you can just slide the lamps around. You don’t have to rebuild the whole wall. The wiring is just as simple. When a tube finally burns out, you want a quick “pop out, pop in” replacement. Nobody has time for a full teardown in the middle of a shift. One last thing: keep those reflectors aligned. If they’re off, your energy is hitting the booth walls instead of the car. And that’s just throwing money away.
